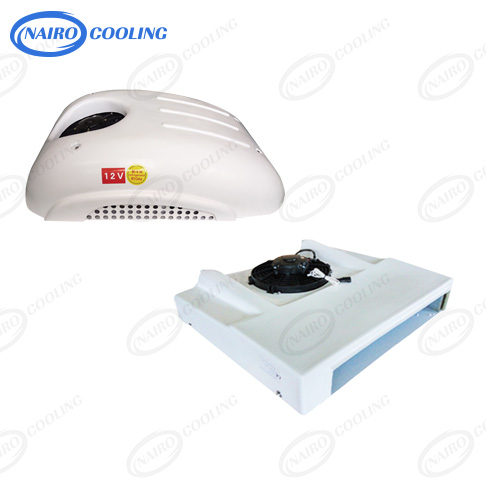

N200E

Driven type: DC12V/DC24V battery driven

Compressor:Electric compressor

Application:3-4m3 (-5℃ ) Van body

Function:Fresh

Send Email Get Price Whatsapp
Features Technical Data Application Related Products Inquiry

Features

  • Full-electric refrigeration unit for medium-size vans and trucks.
  • With no road compressor or drive kit, all the major components are fully integrated.
  • The unit can help ensure your operations remain compliant with a growing array of regional and national regulations concerning the reduction of noise and CO2 emissions.
  • This is a split system which consists of condenser with one fan and evaporator with one blower separately.
  • Adopt High Quality Copper Tube and Aluminium Fin to Get High Cooling, Reliable Performance and Long Life.
  • Introducing this unit into your fleet, you can confidently meet current and future sustainability targets throughout the cold chain.

Technical Data

Model N200E
 Driven Type Battery Driven
 Installation Rooftop
 Voltage DC12v / DC24V
 Compressor Electric compressor`
 Controller Digital, In Cab
   Cooling Capacity -5℃ -1235W/4212 BTU
0℃ -1430W/4880 BTU
   Volume of Container 3-4m3 (-5℃ )
    Refrigerant HFC-R134A,0.9-1.1kg
Fan No. 1 Fan, DIA 280MM
Dimension 865*660*210mm
Air Flow 610m3/h
Dimension 610*530*167mm
