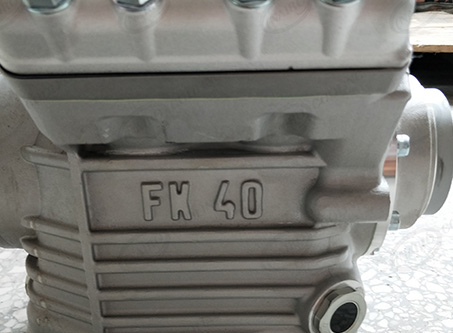

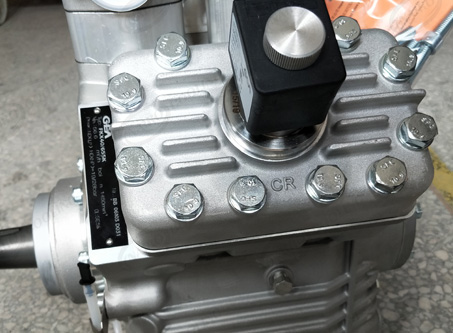

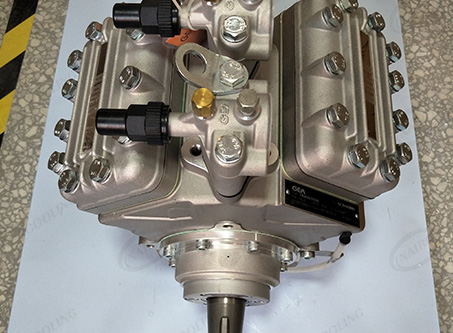

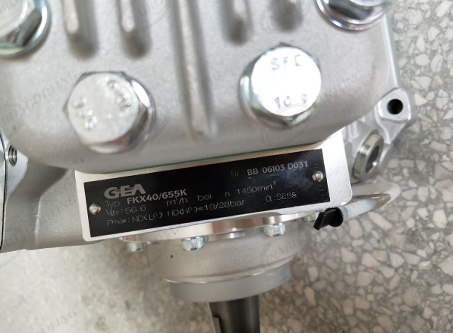

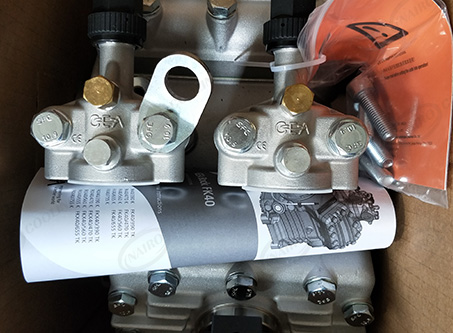

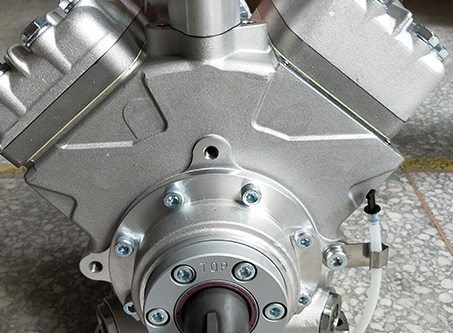

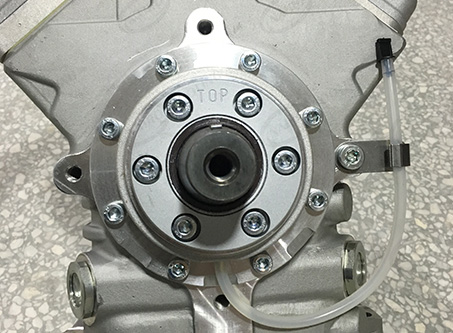

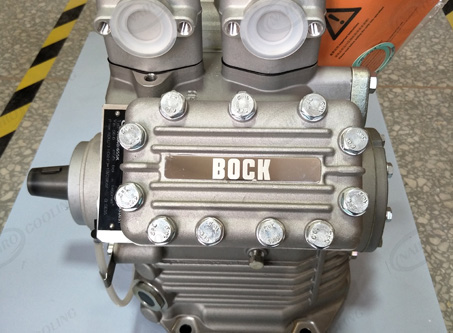

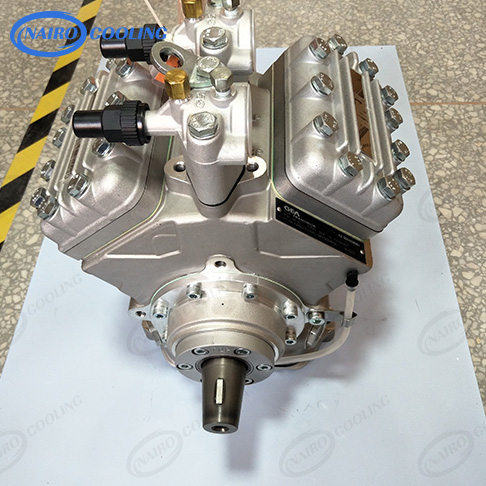

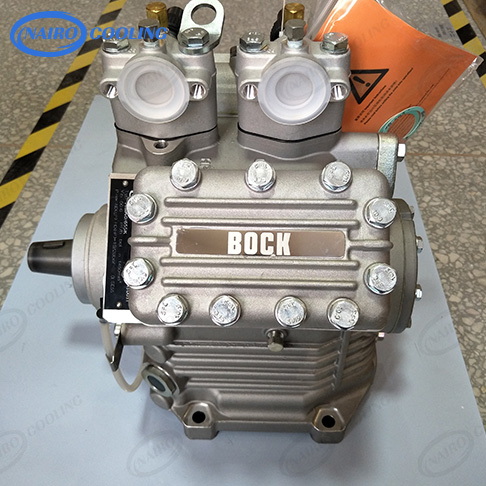

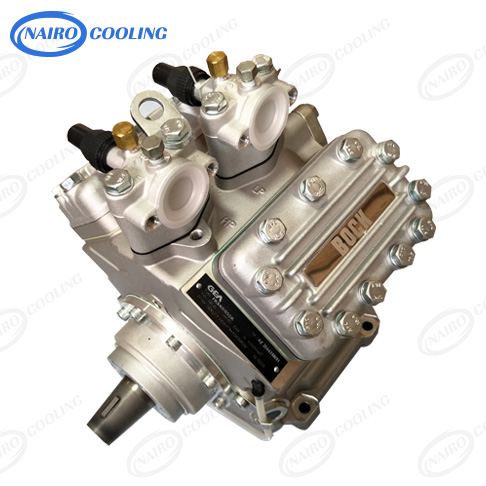

Model:BOCK FKX40/655K
Displacement:655CC
Number of cylinders / Bore / Stroke 4 / 65 mm / 49 mm
Displacement (1450/3000 ¹/min ): 56,60 / 117,10 m³/h
Weight:36Kgs
|
Model |
FKX40/655K |
|
Number of cylinders / Bore / Stroke |
4 / 65 mm / 49 mm |
|
Swept volume |
650 cm³ |
|
Displacement (1450/3000 ¹/min ) |
56,60 / 117,10 m³/h |
|
Mass moment of inertia |
0,0043 kgm² |
|
Weight |
36 kg |
|
Permissible range of rotation speeds |
500 - 3500 ¹/min |
|
Max. permissible pressure (LP/HP) |
19 / 28 bar |
|
Connection suction line SV |
35 mm - 1 3/8 " |
|
Connection discharge line DV |
35 mm - 1 3/8 " |
|
Lubrication |
Oil pump |
|
Oil type R134a, R404A, R407C, R507 |
FUCHS Reniso Triton SE 55 |
|
Oil type R22 |
FUCHS Reniso SP 46 |
|
Oil charge |
2,0 Ltr. |
|
Dimensions （L*W*H ) |
385 * 325 * 370 mm |
|
LP = Low pressure,HP = High pressure |
|
